Variable Double Beam Spectrophotometer Device
95000 INR/Piece
Product Details:
- Shape Rectangular
- Display Type LCD digital display
- Control Type Digital, Automated
- Power Supply AC Mains
- Accuracy 0.5% T
- Temperature Resistance Up to 60C
- Glass Type Quartz cuvette, Optical glass
- Click to View more
X
Variable Double Beam Spectrophotometer Device Price And Quantity
- 1 Piece
- 95000 INR/Piece
- USB, RS232
- 190 nm - 1100 nm
- High speed (selectable)
- 0.001A/h at 500 nm
- Deuterium and Tungsten lamps
- < 0.001A
- Pre-aligned, long-life lamps
- Automatic 4-cell holder
- -0.3 3.0 A
- 0.002A
- 2 nm
Variable Double Beam Spectrophotometer Device Product Specifications
- 220 V AC, 50 Hz
- Quartz cuvette, Optical glass
- 0.5% T
- Up to 60C
- Digital, Automated
- AC Mains
- Metal
- For Hospital and Laboratory Use
- Automatic calibration, USB/RS232 connectivity, Data storage, Real-time graphical display
- Double Beam Variable Spectrophotometer
- Spectrophotometer Device
- 220 Volt (v)
- LCD digital display
- 600 x 450 x 250 mm
- High grade corrosion-resistant metal and plastic
- Spectrophotometer
- Rectangular
- 10-30 Kilograms (kg)
- Quantitative and qualitative analysis of substances in laboratories and research
- USB, RS232
- 190 nm - 1100 nm
- High speed (selectable)
- 0.001A/h at 500 nm
- Deuterium and Tungsten lamps
- < 0.001A
- Pre-aligned, long-life lamps
- Automatic 4-cell holder
- -0.3 3.0 A
- 0.002A
- 2 nm
Variable Double Beam Spectrophotometer Device Trade Information
- Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
- 7 Piece Per Day
- 1 Week
- Australia, North America, Eastern Europe, Western Europe, Middle East, Central America, South America, Asia, Africa
- All India
Product Description

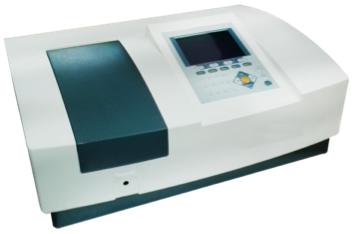

Variable Double Beam Spectrophotometer Device
AJANTA EXPORT INDUSTRIES are manufacturer, supplier and exporter of Variable Double Beam Spectrophotometer Device.
Technical Specifications:
| Wavelength Range | 190-1100 nm (1200 Lines/mm grating) |
| Mode | Basic/Quantitative/Wavelength Scan/DNA Protein Test/Kinetics |
| Scanning Speed | Fast / Medium / Slow |
| Wavelength Accuracy | +0.1 nm |
| Bandwidth | 0.5, 1,2,4,5 |
| Wavelength Reproducibility | 0.1 nm |
| Photometric Display Range | 0-200 % T, -0.3 - 3.0 A, 0-9999 C |
| Photometric Accuracy | + 0.3 % T |
| Photometric Repeatability | + 0.2 % T |
| Stability | 0.001A/h @ 500 nm |
| Baseline Flatness | + 0.001 A |
| Noise | +0.001A |
| Stray Light | < 0.05% T @ 220nm, 360 nm) |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | Graphic LCD (320*240 Dots) |
| Lamps | Deuterium Lamp & Tungsten Halogen Lamp |
| Detector | Silicon Photodiode |
| Dimensions(L*W*H) | 630 x 430 x 206 mm |
| Net Weight | 26 Kg |
Advanced Wavelength Precision
Offering an extensive wavelength range of 190 nm to 1100 nm, the spectrophotometer accommodates a wide spectrum of analytical needs in research and clinical laboratories. Its 2 nm spectral bandwidth ensures sharp resolution for accurate detection and measurement of various substances.
Automated Convenience and Data Handling
The automatic 4-cell holder streamlines sample processing, while the digital LCD display provides real-time graphical data visualization. Seamless USB and RS232 interfaces support easy data export, storage, and integration with laboratory information systems, simplifying workflow and record-keeping.
Robust and Reliable Construction
Designed with high-grade corrosion-resistant metal and optical glass, the device offers exceptional durability and consistent performance. Its pre-aligned, long-life light sources and temperature resistance up to 60C make it well-suited for continual operation in both clinical and research environments.
FAQ's of Variable Double Beam Spectrophotometer Device:
Q: How does the Variable Double Beam Spectrophotometer improve laboratory workflow?
A: This spectrophotometer features an automatic 4-cell sample holder, automated calibration, and real-time digital display, all of which enhance efficiency and reduce user intervention, resulting in smoother and faster laboratory operations.Q: What applications is this spectrophotometer best suited for?
A: It is ideal for both quantitative and qualitative analysis of samples in hospitals and research laboratories, such as determining concentration, purity, and spectral characteristics of various substances.Q: When should I use the Deuterium or Tungsten lamps provided with the device?
A: The Deuterium lamp is used for UV measurements (190-380 nm), while the Tungsten lamp is suited for the visible and near-infrared spectrum (above 380 nm). The instrument automatically selects the appropriate source depending on wavelength requirements.Q: Where can the spectrophotometer be installed safely?
A: It can be set up in any standard laboratory environment with a stable AC mains power supply (220 V, 50 Hz), adequate bench space for its 600 x 450 x 250 mm footprint, and room temperature not exceeding 60C.Q: What is the process for data storage and transfer?
A: Data can be easily stored and exported via USB or RS232 ports. The device is compatible with common data management systems, allowing secure archiving or further analysis on connected computers.Q: How does the robust construction benefit the user?
A: The spectrophotometer is made from high-quality corrosion-resistant metal and optical components, ensuring longevity and minimal maintenance, even with frequent or prolonged laboratory use.Tell us about your requirement
