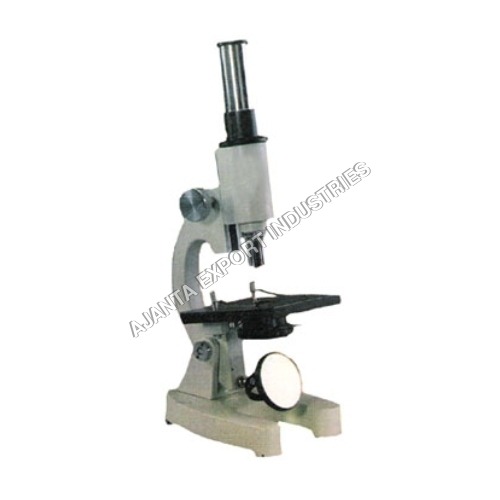

Biological Co-Axial Microscope

22000 INR/Piece

Get a Price/Quote

Product Details:

Application Laboratory
Focus System Co-axial coarse and fine focusing
Usage For Micro Objects
Spare Parts Replacement bulbs, Fuse, Spare eyepiece
Features Rugged metal body, Anti-fungal optics, Carrying handle
View Head Monocular, Head Rotatable 360
Material Metal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Biological Co-Axial Microscope Price And Quantity

Minimum Order Quantity 1 Piece
Price 22000 INR/Piece

Safety Features Fused power input, Over-voltage protection
Body Material Sturdy metal alloy
Nosepiece Quadruple, ball bearing
Weight Approximately 7 kg
Stage Movement X-Y coaxial control with Vernier scale
Packaging Foam-padded box for safe transit
Optical Coating Anti-fungal, anti-reflection
Power Supply 230V AC, 50/60 Hz or rechargeable battery option
Color White/Black contrast

Biological Co-Axial Microscope Product Specifications

Coarse Adjustment Range 20 mm
Eyepiece Tube Inclined at 45
Dimensions Approx. 370 mm x 250 mm x 175 mm
Light Source LED lamp, 230V, 50Hz
Eyepieces Wide Field 10x (Pair)
Material Metal
View Head Monocular, Head Rotatable 360
Theory Biological Microscope
Condenser NA 1.25, Abbe condenser with iris diaphragm
Illumination Built-in LED with adjustable intensity
Working Stage Mechanical Stage, 120x120 mm with 75x30 mm travel
Spare Parts Replacement bulbs, Fuse, Spare eyepiece
Objective Achromatic Achromatic 4x, 10x, 40x, 100x (oil)
Features Rugged metal body, Anti-fungal optics, Carrying handle
Interpupillary Distance Not adjustable (monocular head)
Fine Adjustment Range 0.002 mm
Usage For Micro Objects
Focal Distance 160 mm (standard objective focal length)
Focus System Co-axial coarse and fine focusing
Application Laboratory
Magnification 40X to 1000X
Drawtube Monocular, 360 Rotatable
Focus Range Coarse and fine adjustment

Safety Features Fused power input, Over-voltage protection
Body Material Sturdy metal alloy
Nosepiece Quadruple, ball bearing
Weight Approximately 7 kg
Stage Movement X-Y coaxial control with Vernier scale
Packaging Foam-padded box for safe transit
Optical Coating Anti-fungal, anti-reflection
Power Supply 230V AC, 50/60 Hz or rechargeable battery option
Color White/Black contrast

Biological Co-Axial Microscope Trade Information

Payment Terms Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 1 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Western Europe, North America, Eastern Europe, Central America, Middle East, South America, Asia, Australia, Africa
Main Domestic Market All India

Product Description

Biological Co-Axial Microscope

Biological microscope is equipped with infinity plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

Super wide field (22mm) eyepieces and infinity plan achromatic objectives
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2m
Working distance of stage: 30mm
Kohler illumination with 6V/30W halogen lamp with brightness control
Trinocular, can send 100% of light to the eyepieces or to the video tube

Standard Configuration

Model	L3200A	L3200B
Eyepiece	WF10x( view field 22mm)
Objective	Infinity plan achromatic PL 4x/0.10	Infinity plan achromatic PL 4x/0.10
	Infinity plan achromatic PL 10x/0.25	Infinity plan achromatic PL 10x/0.25
	-	Infinity plan achromatic PL 20x/0.40
	Infinity plan achromatic PL 40x/0.65(Spring)	Infinity plan achromatic PL 40x/0.65(Spring)
	Infinity plan achromatic PL 100x/1.25(Spring, oil)	Infinity plan achromatic PL 100x/1.25(Spring, oil)
Head	Trinocular ( Inclination of 30??)
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2m.
Nosepiece	Quadruple (backward)	Quintuple (backward )
Stage	Double layer mechanical (Size:210mmx140mm, Move range: 75mmx50mm)
Condenser	N.A.1.25 Abbe condenser
Filter	Blue filter
	Frosted filter
Collector	Kohler illumination with field diaphragm
Illumination	6V 30W Halogen lamp with brightness control

Exceptionally Sturdy and Reliable

Built from a durable metal alloy, the microscope withstands rigorous handling and continuous use. Its rugged build, combined with a white/black contrasting finish, makes it suitable for various lab environments, while the integrated carrying handle enhances portability.

Precision Viewing and Smooth Operation

The co-axial stage controls paired with a vernier scale deliver highly accurate sample positioning. The achromatic, anti-fungal optics ensure clear, high-contrast imaging, and the 360 rotatable monocular head allows flexible observation angles for user comfort.

User-Friendly Design and Safety

With a 230V AC power supply or a rechargeable battery option, this microscope supports diverse laboratory needs. Key safety features, such as fused power input and over-voltage protection, ensure safe and reliable operation during extended periods of use.

FAQ's of Biological Co-Axial Microscope:

Q: How do I operate the X-Y coaxial stage controls for sample positioning?

A: Gently rotate the X-Y coaxial control knobs to move the 120x120 mm mechanical stage precisely in both directions. The integrated vernier scale assists in tracking the exact position, enabling repeatable, accurate sample analysis.

Q: What is the benefit of the anti-fungal, anti-reflection optical coating?

A: These coatings protect the optics from fungal growth-especially important in humid climates-and minimize light reflection, improving image clarity and maintaining the longevity of the microscope's lenses.

Q: When should I replace spare parts like bulbs, fuses, or eyepieces?

A: Replace bulbs or fuses when illumination or electrical protection fails. Change eyepieces if you notice visual distortion. The package includes these spare parts for swift replacement and uninterrupted usage.

Q: Where can this microscope be used effectively?

A: This model is optimized for laboratories in educational institutions, clinical research, training centers, and industrial quality control departments looking to study micro objects efficiently.

Q: What process should I follow to clean and maintain the microscope?

A: Wipe lenses with a soft, lint-free cloth and use gentle cleaning solutions for optical parts. Regularly dust the exterior, avoid harsh chemicals, and ensure dry storage. For electrical components, always disconnect the power supply before maintenance.

Q: How does the built-in LED illumination enhance usage?

A: The integrated, adjustable-intensity LED lamp provides consistent, bright lighting to reveal fine structural details in specimens, improving visual clarity without heating the sample area.

Q: What are the magnification capabilities and applications of this microscope?

A: Equipped with achromatic objectives from 4x to 100x and a wide-field 10x eyepiece, this microscope delivers total magnifications between 40X and 1000X, making it ideal for examining biological specimens, cells, and microorganisms in detail.
